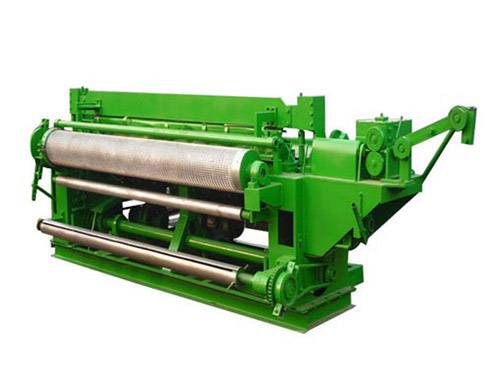

0.4-1.2mm Fully Automatic Welded Wire Mesh Machine

  • Hengtai
  • US $7,000-13,500/Set
  • 1 Set/Sets
  • 15 Set/Sets per Month
  • Tianjin
  • T/T, LC,
Quantity:

The machine is welded together by extra heavy steel and section steel to make the machine more stable. The machine adopts synchronous control technology, control of welding and welding time are controlled by the digital programming system, the input panel for touch screen or keys, operating more intelligent, and has one pressed, split welding characteristics, welding power is driven by electric, the step motor feeding hopper, brake motor to drive the car for wire feeding, the stepper motor to drive the car to the net. The warp and the weft were cut off by the straightening machine, vertical wire put by manual, the cross wire is fall from hopper.

Wire diameter: Φ0.4-Φ1.2mm)
hole size: 1/4''-1/2''
welding width: 600-1500mm
welding speed:80-120 times/min
voltage: 380v/415v 50hz
power: 65kvax4
dimension: 2500x1500x1200mm
weight: 1800kg

IMG_5734_副本_副本_副本_副本_副本_副本IMG_6797_副本_副本_副本_副本_副本


timg6_副本_副本QQ图片20190627151407_副本_副本
