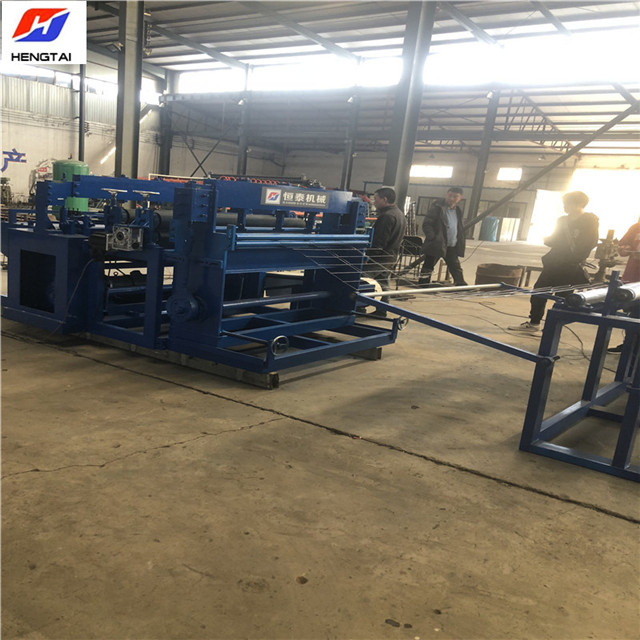

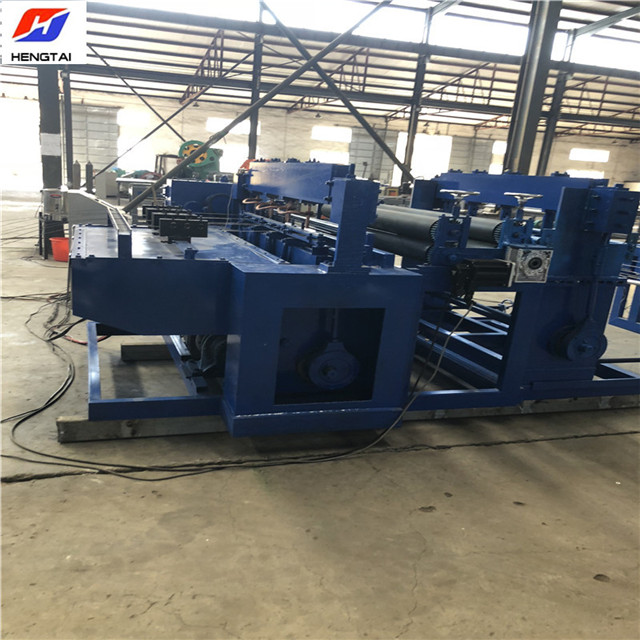

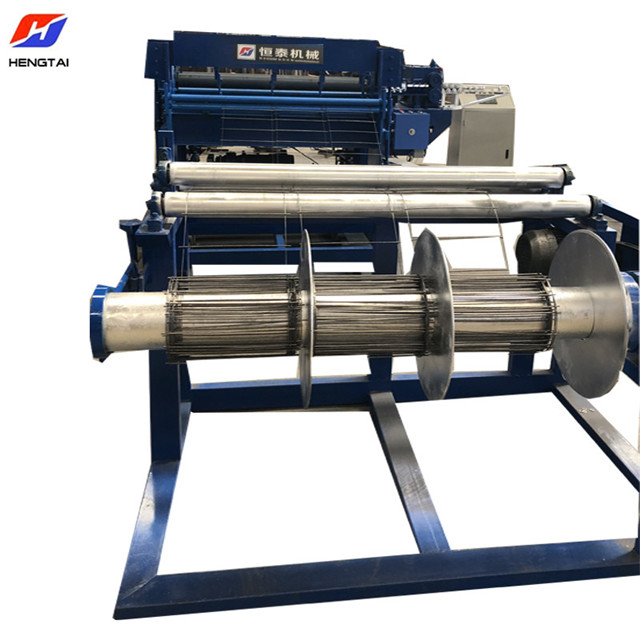

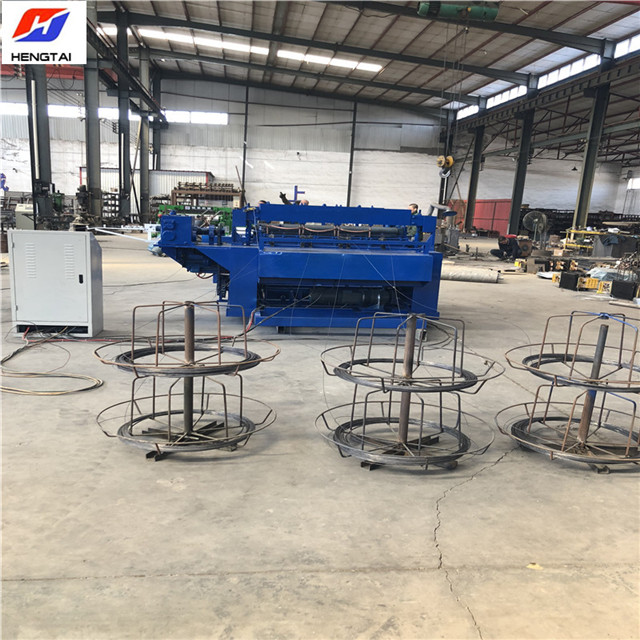

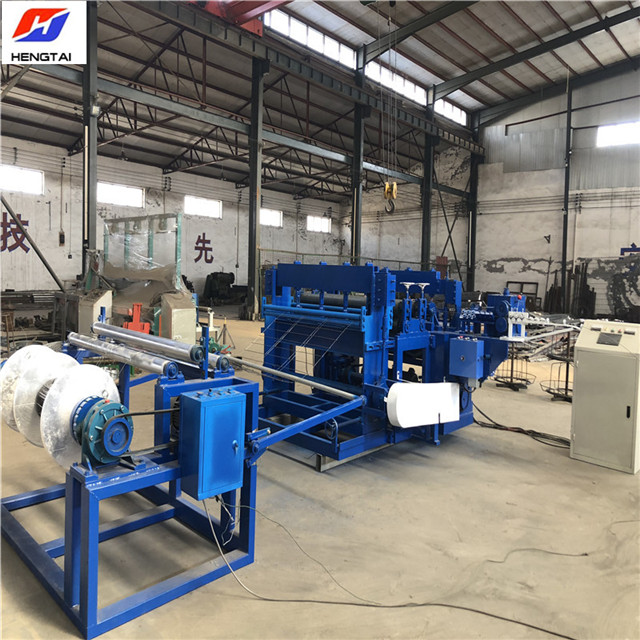

3 Rolls Brick Force Mesh Welding Machine

Brick force mesh welding machine which will allow you to produce brick force meshes of different size.
  • HT-1000

  • HENGTAI

  • US $12,000-22,000/Set

  • 1 Set

  • 15 Sets/month

  • Tianjin,China

  • T/T,L/C

Availability:
Quantity:

Machine Description:

1. Brick force mesh welding machine which will allow you to produce brick force meshes of different size.Line wire and cross wire distance is adjustable.

2. The machine is controlled by integrated electric circuit,not only welding speed is fast and easy to learn and operate for you.

3. Cross wire feeding device is driven by step motor which make the mesh size accurate.

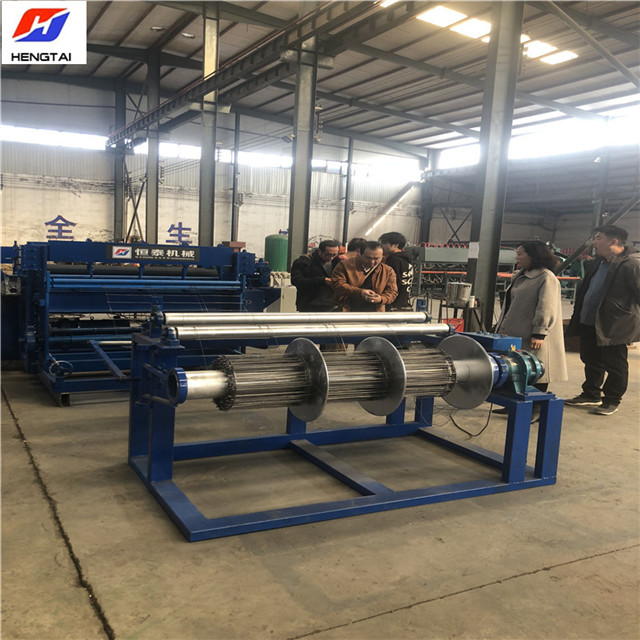

4. Line wire is automatic in coil and straightened by wire straightening wheel.

5. Mesh pulling device is driven by spring rod which make the aperture accurate.

6. You will get 6 or 8 rolls of brick force mesh at the same time.

7. The available wire is black wire or galvanized wire.



Technical Parameters:

Model

HT-1000

Wire Diameter

1.6-3mm

Line Wire Space

30-50mm(as your demand)

Cross Wire Space

25-500mm

Line Wire Feeding

Automatically from coil

Cross Wire Feeding

Automatically from coil

Welding Speed

50-70times/ min

Voltage

220V/380/415V (as your demand)

Transformer

100KVA

Motor

4KW

Mesh Form

3 rolls at the same time



Packaging & Delivery

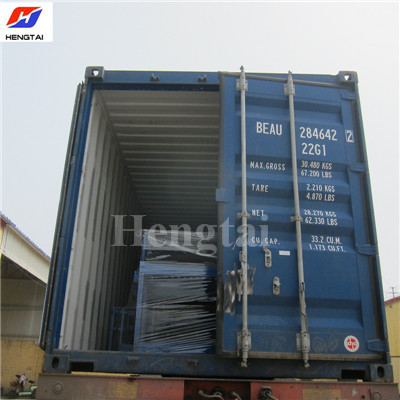

1. Brick force mesh welding machine will be protected with plastic film, and fastened with steel rope in container
2. For spare parts will be in carton box

6     IMG_0036

Finished Products&Application

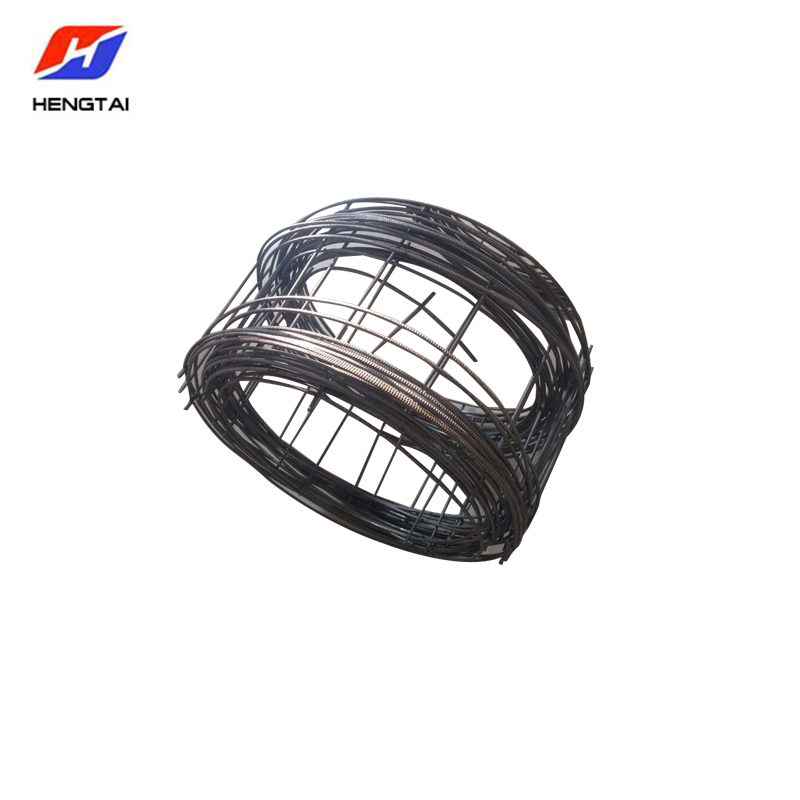

Brickforce mesh produced by brick force wire mesh welding machine, also called ladder mesh,welding forming brick belt net.The Brick force mesh are widely used in construction, hollow wall reinforcement,increase the elastic force,prevent wall crack,is good building accessories.


004
