Machine Description:

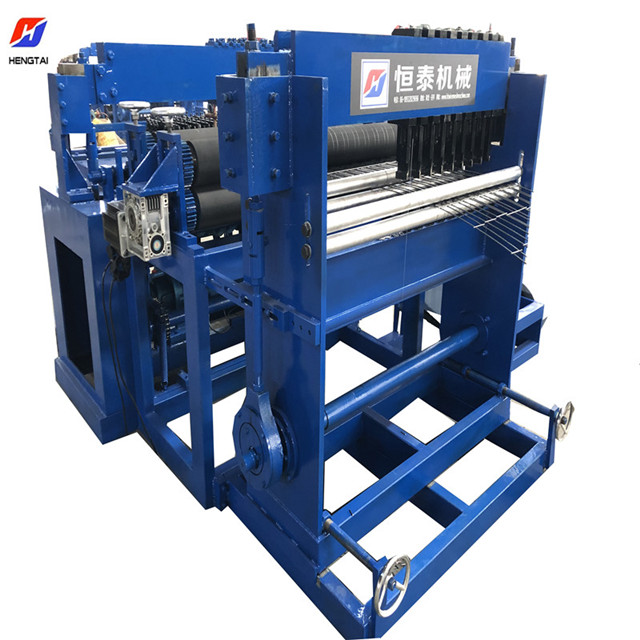

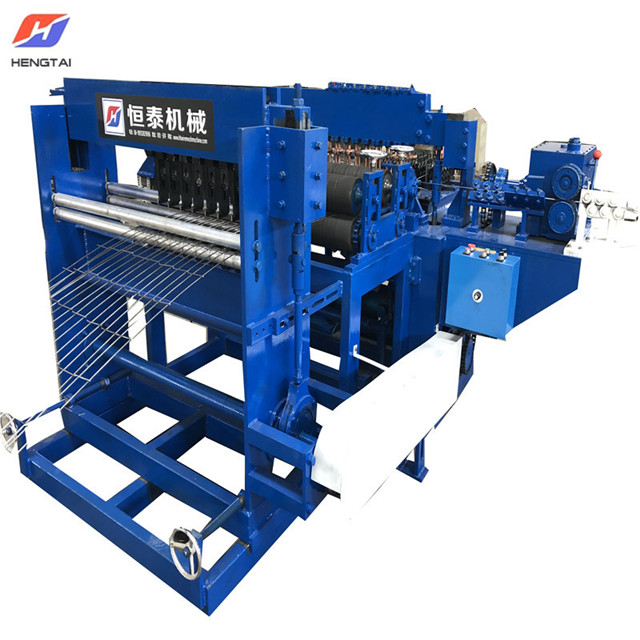

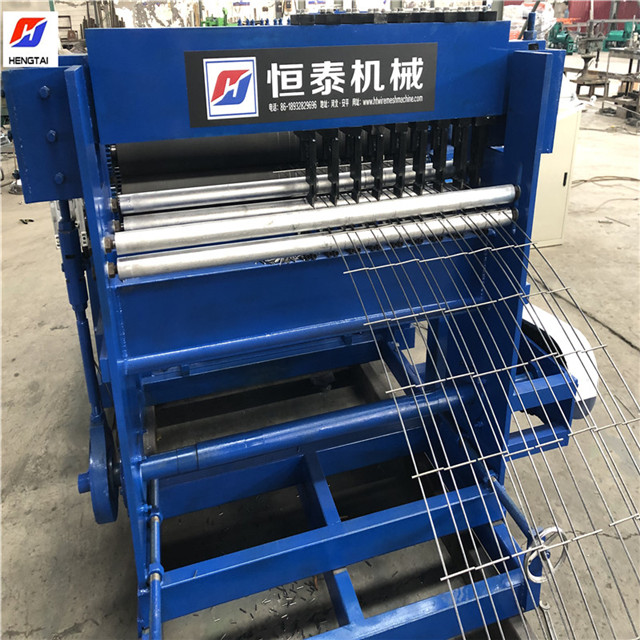

1. Brick force mesh welding machine which will allow you to produce brick force meshes of different size.Line wire and cross wire distance is adjustable.
2. The machine is controlled by integrated electric circuit,not only welding speed is fast and easy to learn and operate for you.
3. Cross wire feeding device is driven by step motor which make the mesh size accurate.

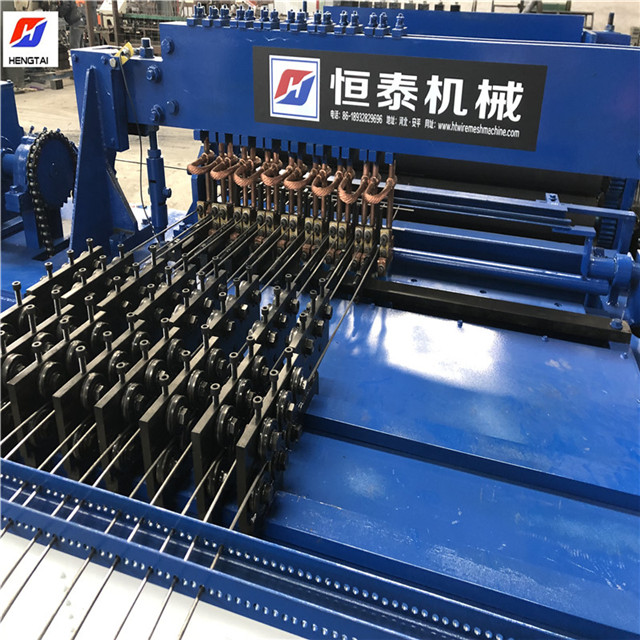

4. Line wire is automatic in coil and straightened by wire straightening wheel.

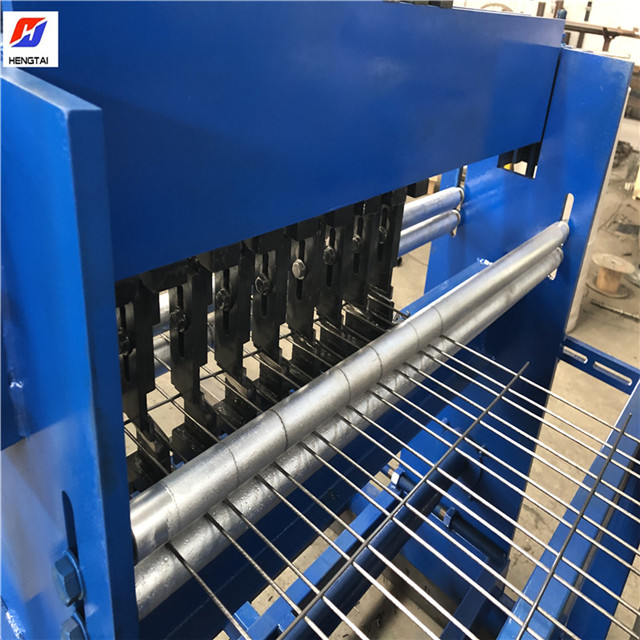

5. Mesh pulling device is driven by spring rod which make the aperture accurate.

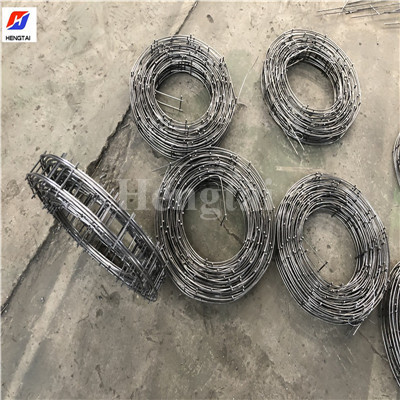

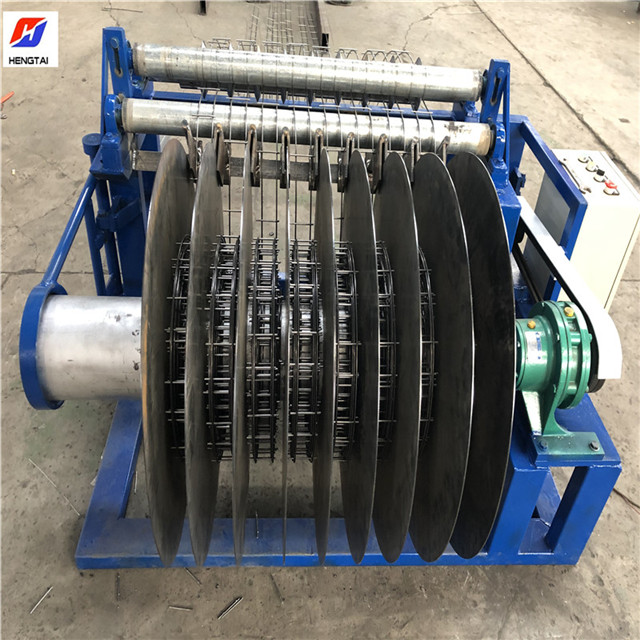

6. You will get 6 or 8 rolls of brick force mesh at the same time.
7. The available wire is black wire or galvanized wire.
Technical Parameters:
Model | HT-1000 |
Wire Diameter | 2-4mm |
Line Wire Space | 50mm(as your demand) |
Cross Wire Space | 100-500mm |
Line Wire Feeding | Automatically from coil |
Cross Wire Feeding | Automatically from coil |
Welding Speed | 50-70times/ min |
Voltage | 220V/380/415V (as your demand) |
Transformer | 100KVA |
Motor | 4KW |
Mesh Form | 6 or 8 rolls at the same time |
