Automatic Wire Mesh Fence Panel Welding Machine

Views:5     Author:Site Editor     Publish Time: 2019-07-30      Origin:Site

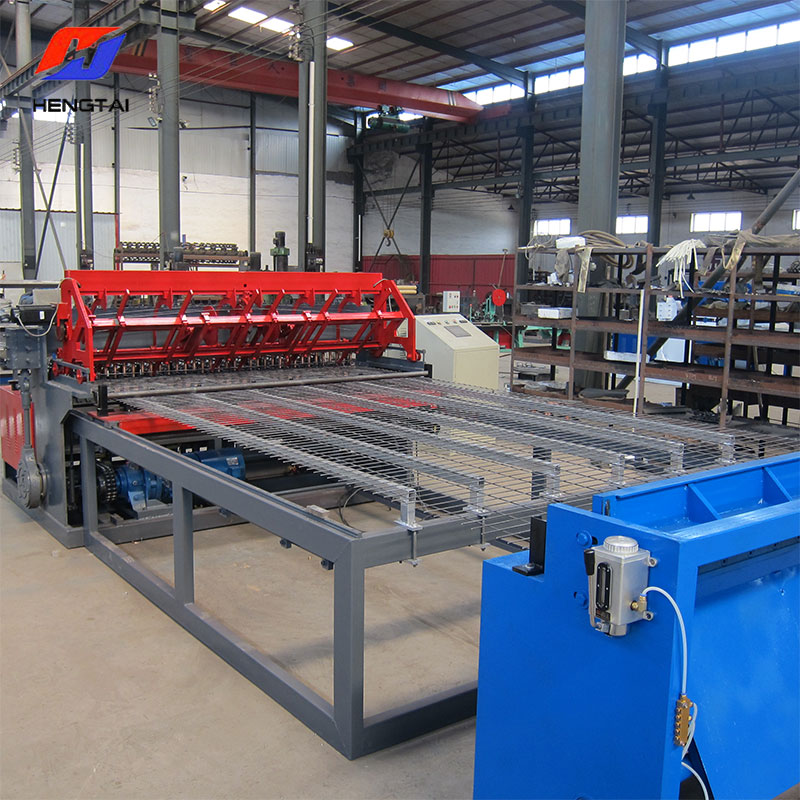

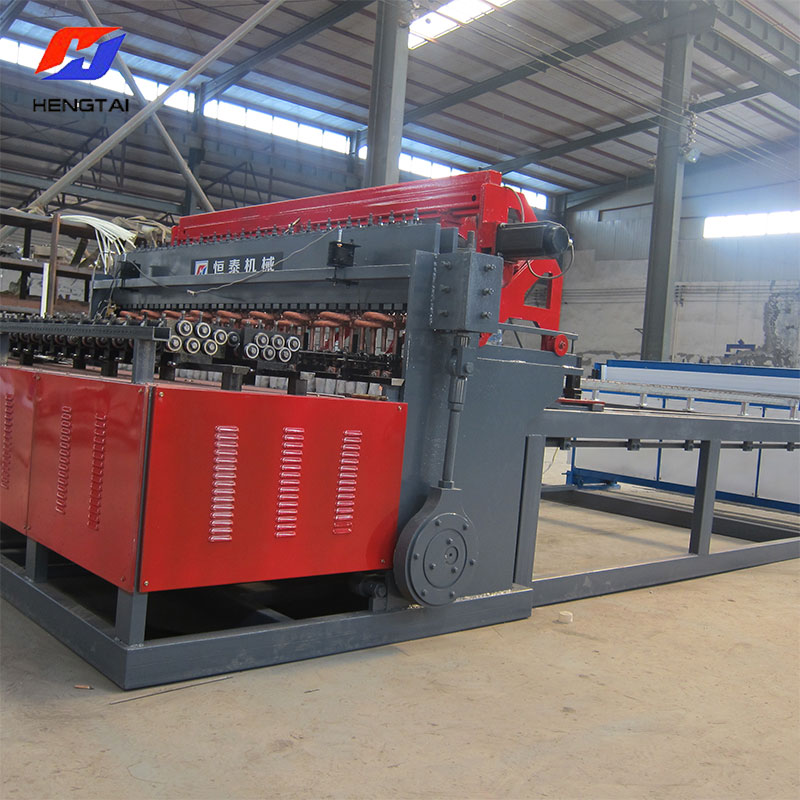

Automatic Wire Mesh Fence Panel Welding Machine


Welding wire diameter range of the device is 3-6mm, the mesh size is 50-200mm. The width of the welding wire mesh is 2500mm (also according to customer requirements)

Features of product:

1, CNC wheel-step design to provide high accurate mesh grid

2, Electrode lift system to extend electrode life

3, Line wire loop and balance system to ensure wire mesh accuracy.

4, Line wire vertical straightening system to provide high quality

5, Welding pressure steplessly adjust to apply multiple wire diameter

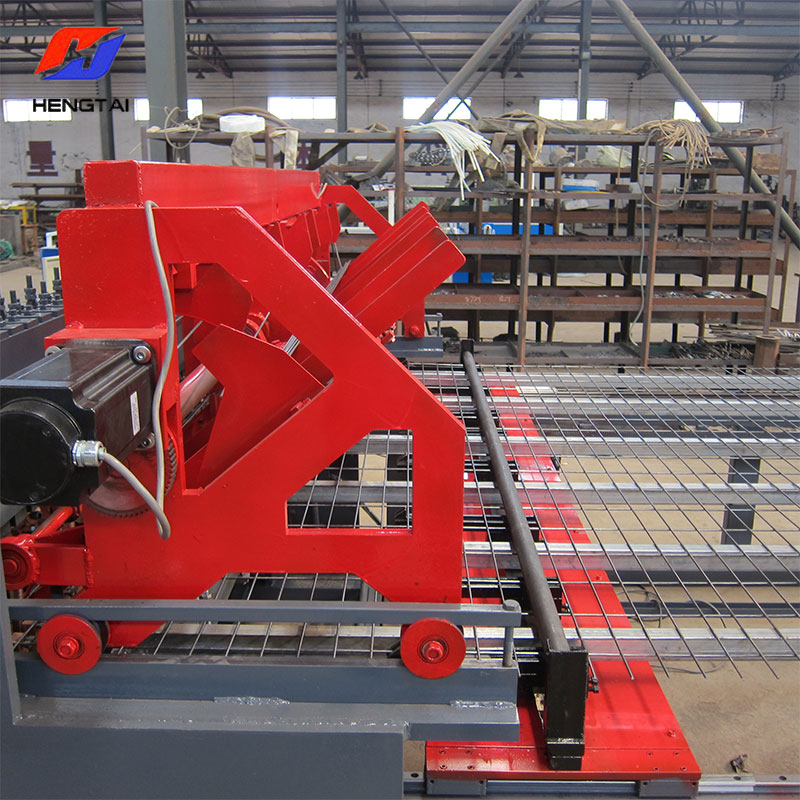

6, High speed mesh cutting system,

7, Line wire automatic put by from wire feeding car

8, Automatic mesh turning, stacking and conveying system


Mechanical parameters

Model

HT-2500

Wire diameter

3.0-6.0 mm

Line wire distance

50-200 mm

Cross wire space

50-200 mm

Line wire feeding

by wire feeding coil

Cross wire feeding

pre-cut wire

Welding speed

40-60 times/min

Rated power

125KVA X 6

Mesh width

Max.2500mm

Welding points

61

Length wire mesh

adjust

Overall Size

8.0*2.5*1.8m

45fgggggggggjk

3457fg

5768dfgfg

Tags: wire mesh welding machine, wire mesh fence panel machine, wire mesh machine

Contact: Sunny Lee

Email: salesg@htwiremeshmachine.com

Tel/whats app:+8613363120163

Skype: Sunnyhengtai@outlook.com
