Full Automatic Welded Wire Mesh Machine in rolls

Views:4     Author:Amy      Publish Time: 2019-08-26      Origin:Site

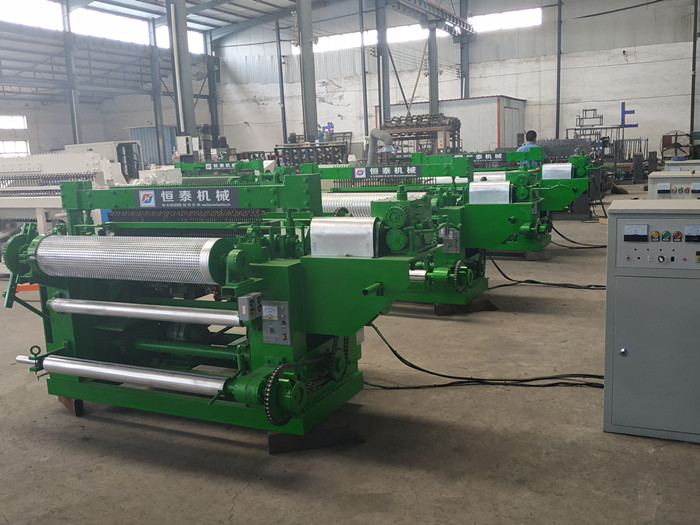

Full Automatic Welded Wire Mesh Machine in rolls

The machine adopts synchronous control technology, control of welding and welding time are controlled by the digital programming system, the input panel for touch screen or keys, operating more intelligent, and has one pressed, split welding characteristics, welding power is driven by electric, the step motor feeding hopper, brake motor to drive the car for wire feeding, the stepper motor to drive the car to the net. The warp and the weft were cut off by the straightening machine, vertical wire put by manual, the cross wire is fall from hopper.

Wire diameter: Φ0.4-Φ1.2mm)
hole size: 1/4''-1/2''
welding width: 600-1500mm
welding speed:80-120 times/min
voltage: 380v/415v 50hz
power: 65kvax4
dimension: 2500x1500x1200mm
weight: 1800kg

QQ图片20190805102336_副本

电焊网 (1)

Tags: welded wire mesh machine, wire mesh welding machine, electric welded mesh machine
