High Speed Barbed Wire Mesh Making Machine (single twisted &double strand)

Views: 8     Author: Amy     Publish Time: 2019-12-18      Origin: Site

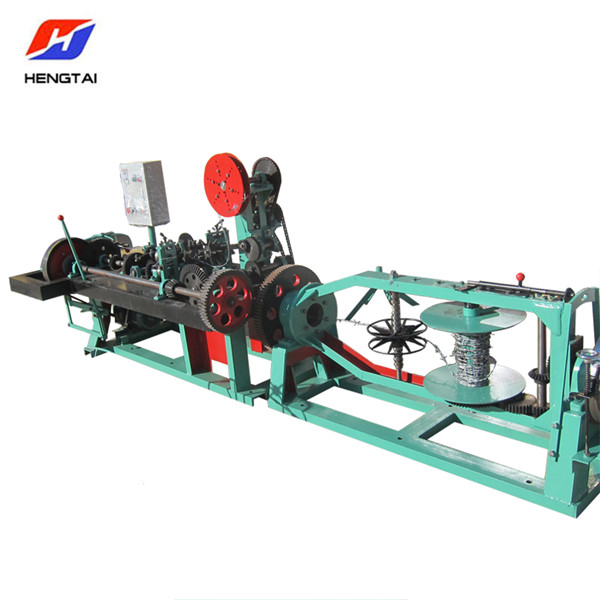

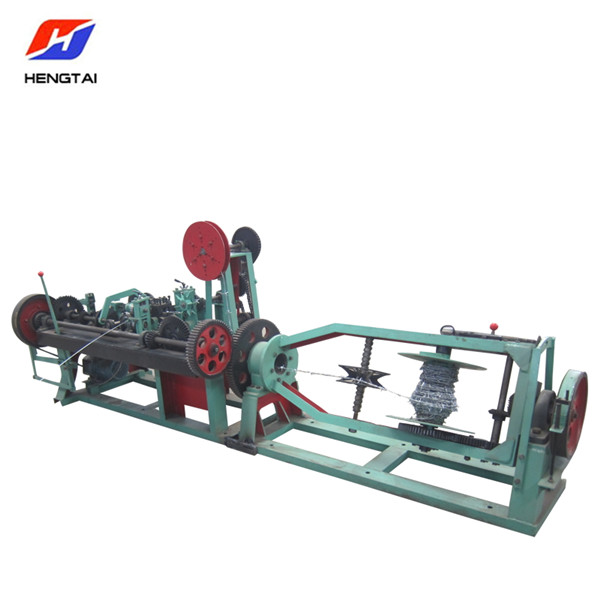

High Speed Barbed Wire Mesh Making Machine

Advance Technologies

1. Manually installation, Easy to set up;

2. Steel cover on driving shaft for safety operation;

3. Saving materials and high capacity;

4. Counter to count the number of barbs and calculate length of barbed wire.

5. Button switches and leveler to start and stop machine easily.

6. Quick and easy roll extraction from the machine.

7. Guiding system to avoid wire snarls.

Technical Parameters

Unit  CS-A Type  CS-B Type  CS-C Type
 Motor power  kw  2.2/3  2.2/3  2.2/3
 Voltage  v 380v 50Hz or 220v 60Hz or 415v 60Hz or customized
 Main drive shaft speed  r/min  402  355  355
 Strand wire diamter  mm  1.6-3.0  2.0-3.0  1.6-2.8
 Barb wire diameter  mm  1.6-2.8  1.6-2.8  1.6-2.8
 Barb pitch  inch  3/4/5/6  3/4/5/6  3/4/5/6
 Twisted number  /  3-5  3  7

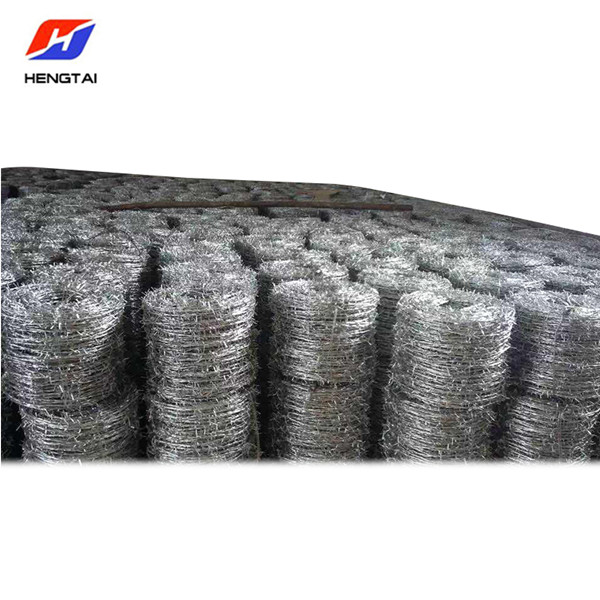

 Raw material  / Galvanized steel wire, PVC coated wire,black wire etc.
 Production  /  20 meters/minute  17meters/minute  17meters/min
