US $6,000-25,000/Set
1 Set/Sets
15 Set/Sets per Month
Tianjin
T/T, LC
| Quantity: | |
|---|---|

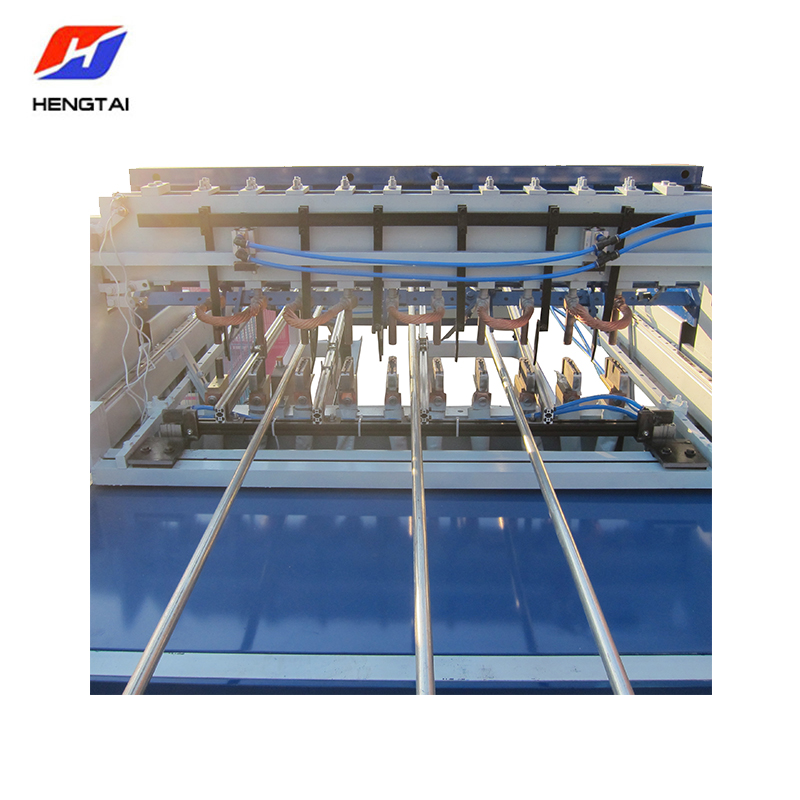

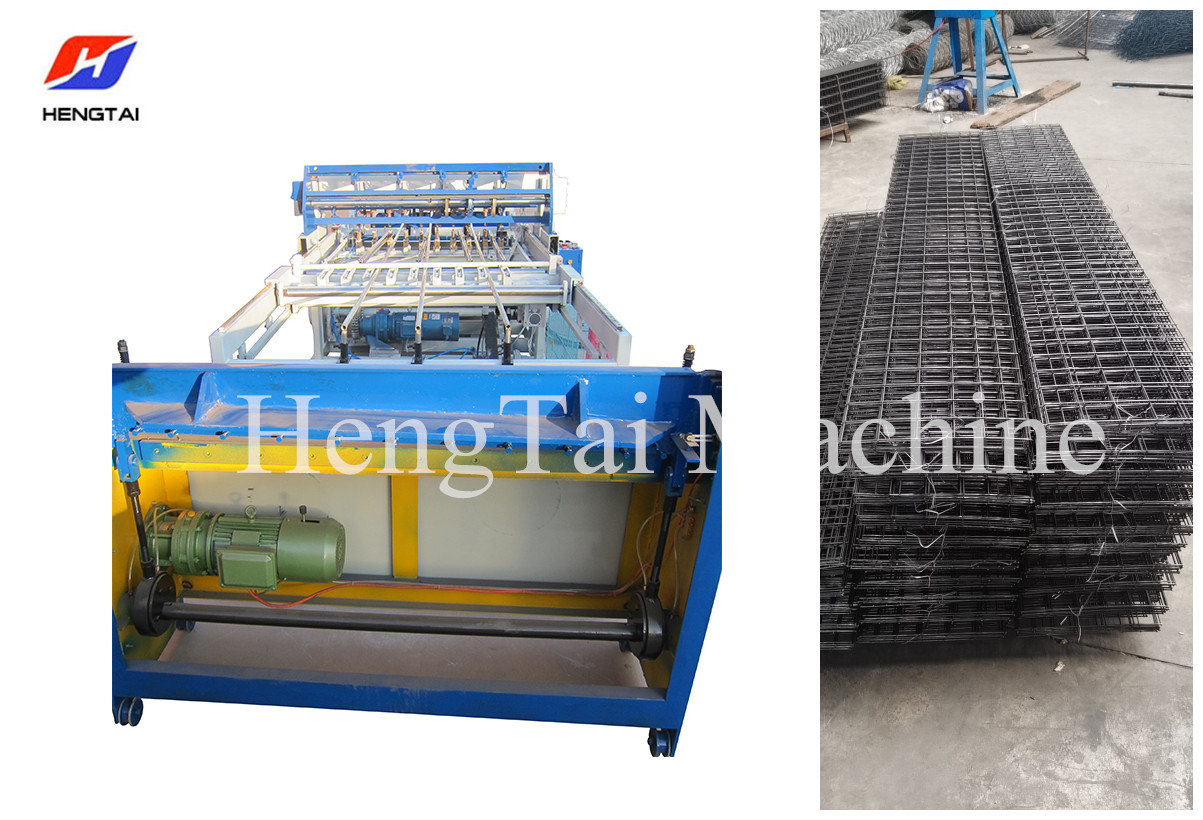

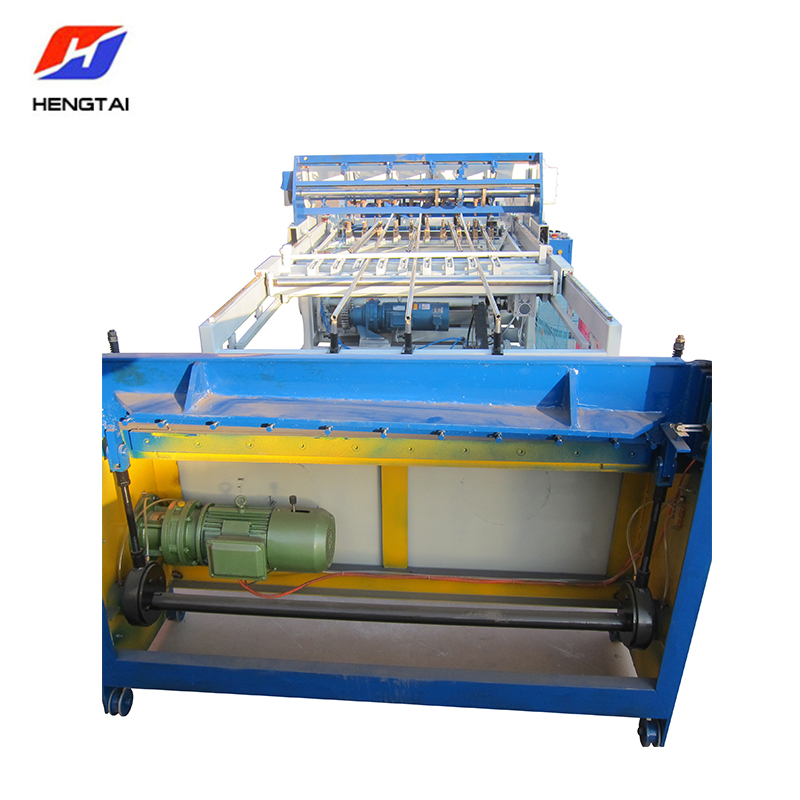

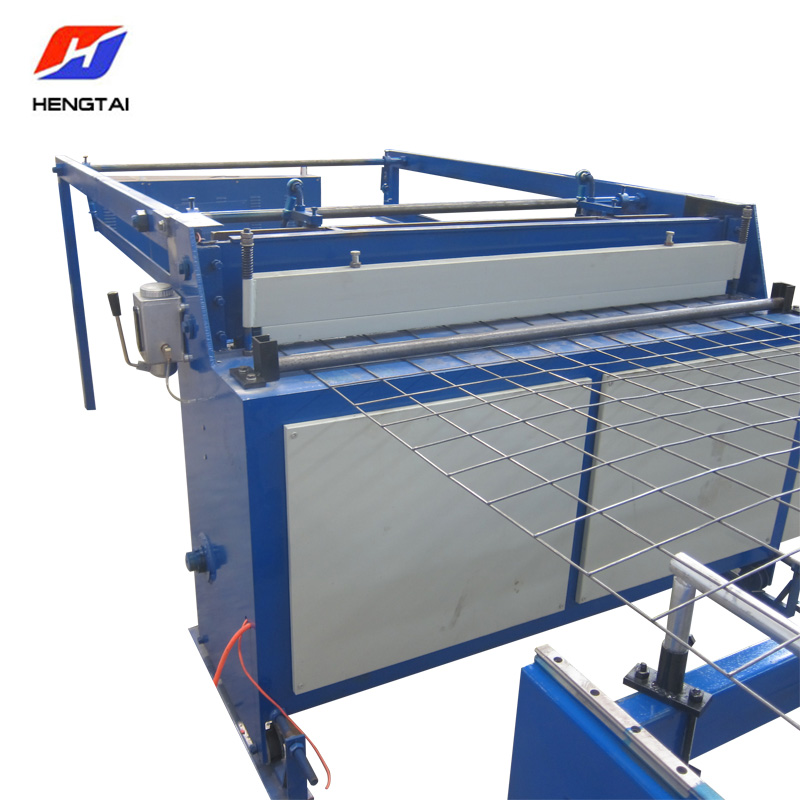

The machinery adopt engine and electronic control rechology Sub-synchronous,control of welding and high precision grid size,Mesh can be adjusted within a certain range.
Line wire automatic feed from the coil and the cross wire should be pre-Straighten&pre-cut.This machine adopt PLC control system,servo motor for pulling mesh,It can set different cross wire space in same panels,It also can set the length of the mesh and cut the mesh automaticlly.
Manly used breeding(hencoop,rabbit cage,fox cage etc.)
Wire diameter: Φ2.0-Φ4.0（mm）
Hole size: 30*30-300×300（mm）
Welding width: Min.1m
Welding speed: 60-90times/min
Voltage: 380v 50Hz
Power: 85KVA*2
Dimension:5000×2200×1500
Weight: 2800kg
We can according your request to produce the machine
The machinery adopt engine and electronic control rechology Sub-synchronous,control of welding and high precision grid size,Mesh can be adjusted within a certain range.
Line wire automatic feed from the coil and the cross wire should be pre-Straighten&pre-cut.This machine adopt PLC control system,servo motor for pulling mesh,It can set different cross wire space in same panels,It also can set the length of the mesh and cut the mesh automaticlly.
Manly used breeding(hencoop,rabbit cage,fox cage etc.)
Wire diameter: Φ2.0-Φ4.0（mm）
Hole size: 30*30-300×300（mm）
Welding width: Min.1m
Welding speed: 60-90times/min
Voltage: 380v 50Hz
Power: 85KVA*2
Dimension:5000×2200×1500
Weight: 2800kg
We can according your request to produce the machine
