Machine Description:

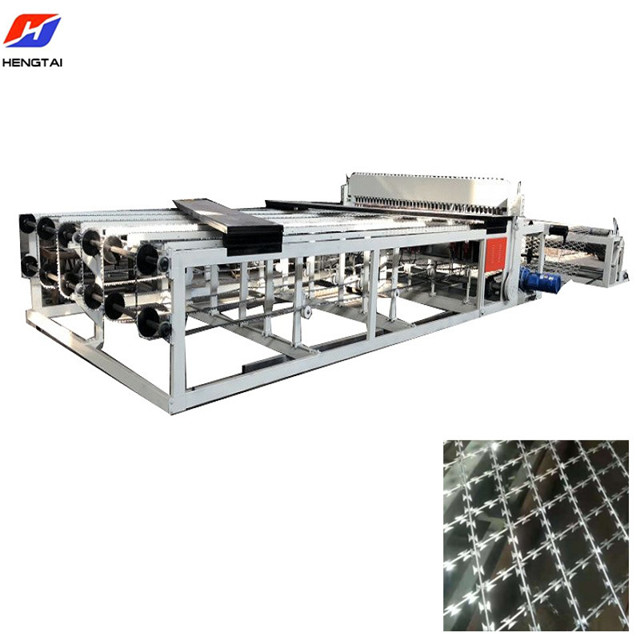

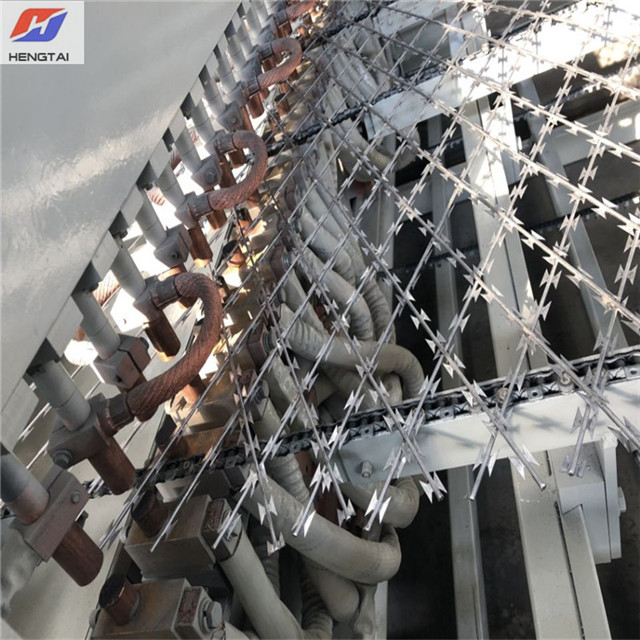

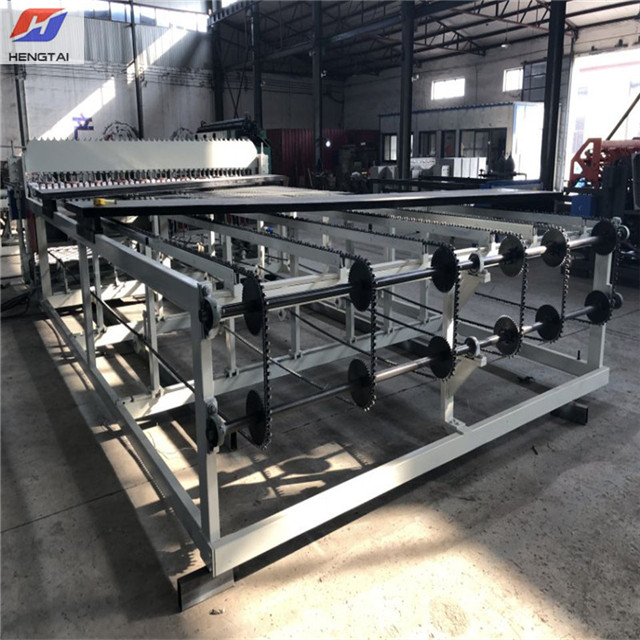

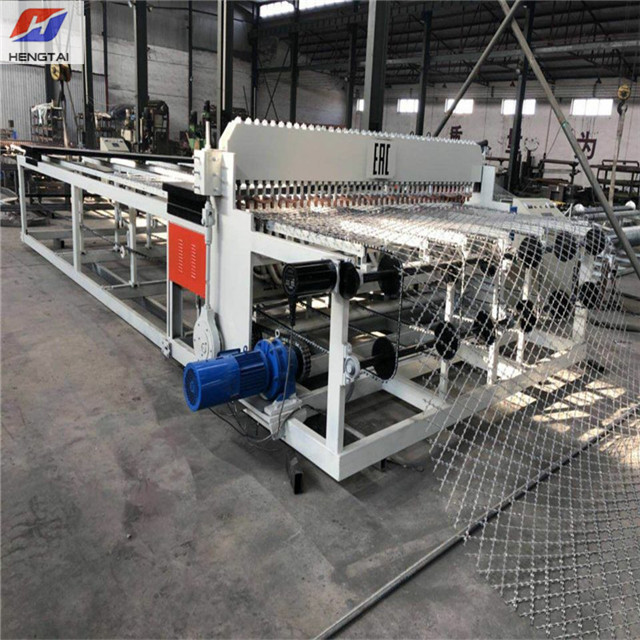

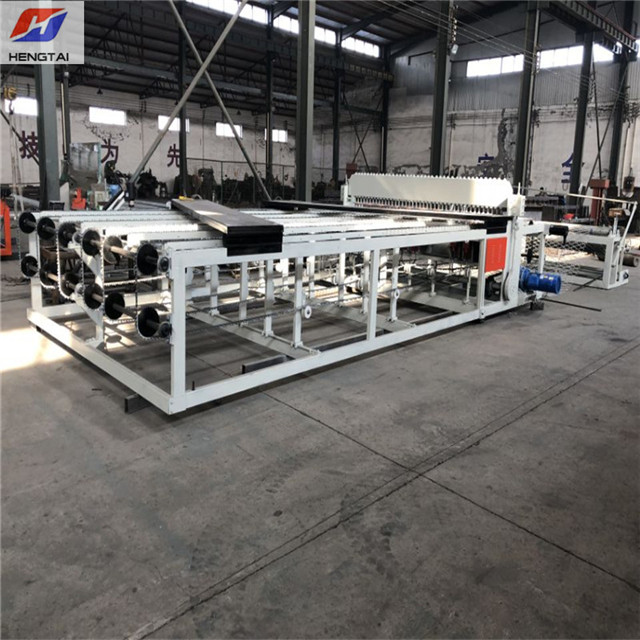

1.Razor wire mesh welding machine which will allow you to produce weld razor wire meshes of different size.Line wire and cross wire distance is adjustable.
2.The machine is controlled by integrated electric circuit,not only welding speed is fast and easy to learn and operate for you.
3.Line wires&cross wires are pre-straightened&cut by razor wire straightening and cutting machine,then place by manual

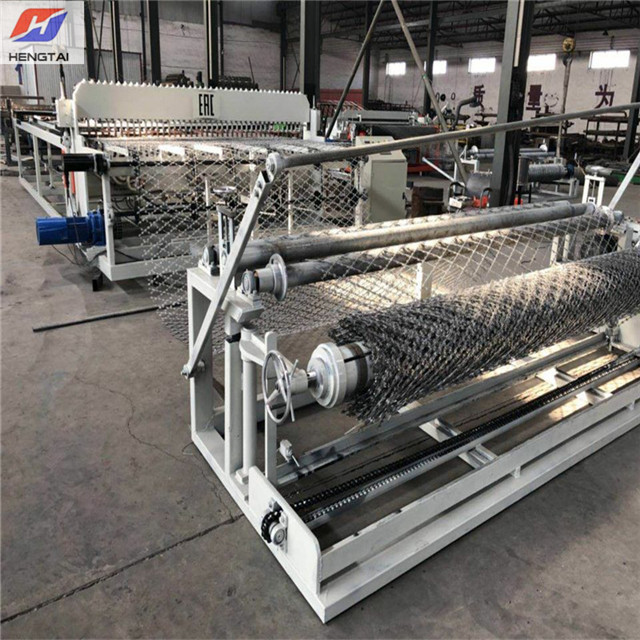

4.Mesh form in roll or panel as your demand
Technical Parameters:
Model | HT-3000 |
Wire Diameter | 2-4mm |
Mesh size | 75x150-150x300mm |
Width of Mesh | Max.3000mm (as your demand) |
Welding Speed | 30-40times/ min |
Voltage | 220V/380/415V (as your demand) |
Transformer | 125KVA*6 Sets |
Motor | 5.5KW |
Mesh Form | In roll or panel(sheet) |
Overall Size | 2800x1800x1200mm |
Weight | 5.2T |

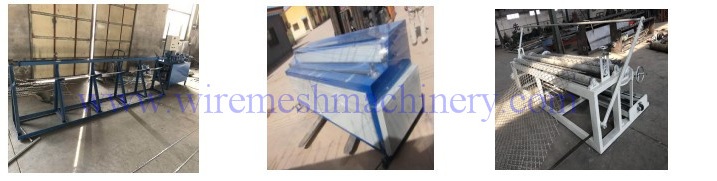

Auxiliary Equipment of Razor Wire Mesh Welding Machine:
Razor wire straightening and cutting machine Mesh cutting machine Mesh rolling machine
