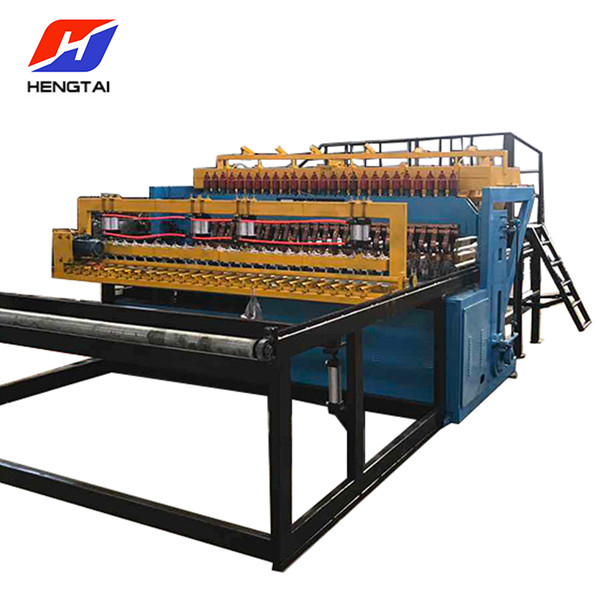

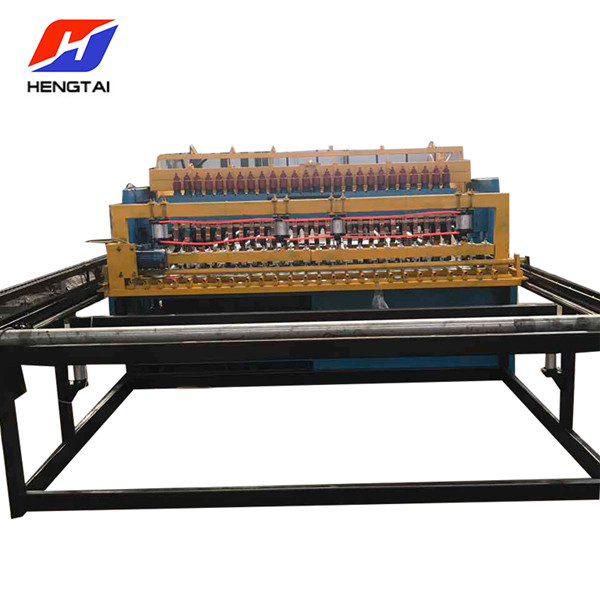

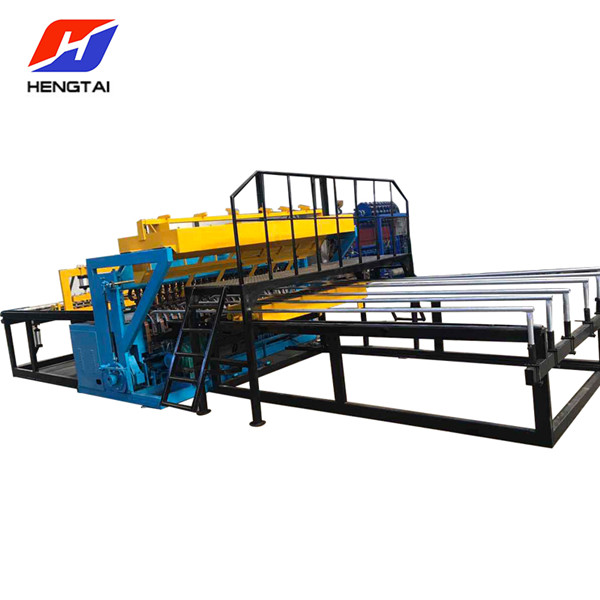

Reinforcing Mesh Welding Machine

Reinforcing mesh welding machine also called rebar mesh welding machine,construction mesh machine.It is used to make steel rebar mesh,road mesh,building construction mesh etc.
  • HT-2000
  • Hengtai
  • US $25,000-40,000/Set
  • 1 Set/Sets
  • 10 Set/Sets per Month
  • Tianjin
  • T/T, LC, D/A, D/P, O/A

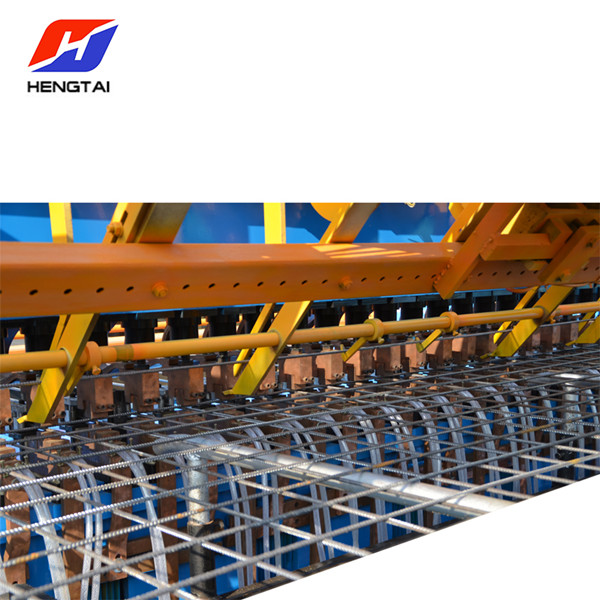

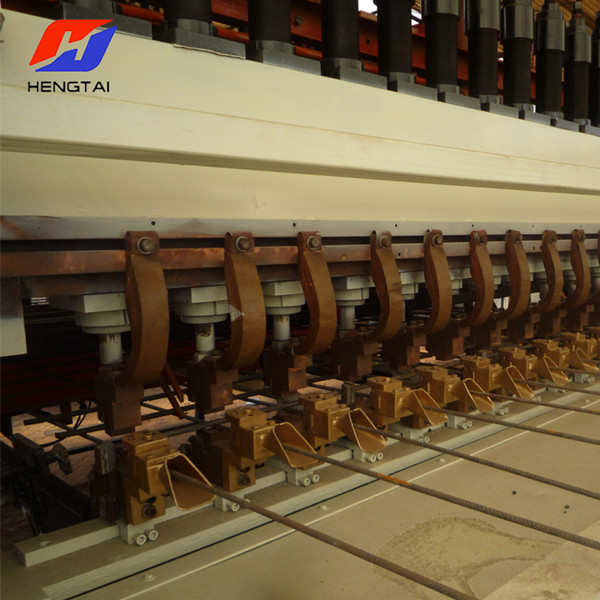

The reinforcing mesh welding machine is welded together by extra heavy steel and section steel to make the machine more stable. The machine adopts synchronous control technology, control of welding and welding time are controlled by the digital programming system, the input panel for touch screen or keys, operating more intelligent, and has one pressed, split welding characteristics, welding power is driven by electric, the step motor feeding hopper, brake motor to drive the car for wire feeding, the stepper motor to drive the car to the net. The warp and the weft were cut off by the straightening machine, vertical wire put by manual, the cross wire is fall from hopper.

Wire diameter: Φ6.0-Φ12.0(mm)
hole size: 100*100-300×300(mm)
welding width: 2000-3000(mm)
welding speed: 30times/min
voltage: 380v 50Hz
power: 125KVA
dimension: 6000×3200×1800
weight: 3800kg

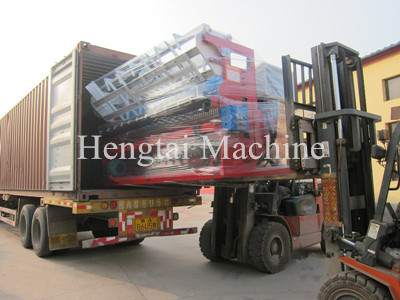

Packaging & Delivery

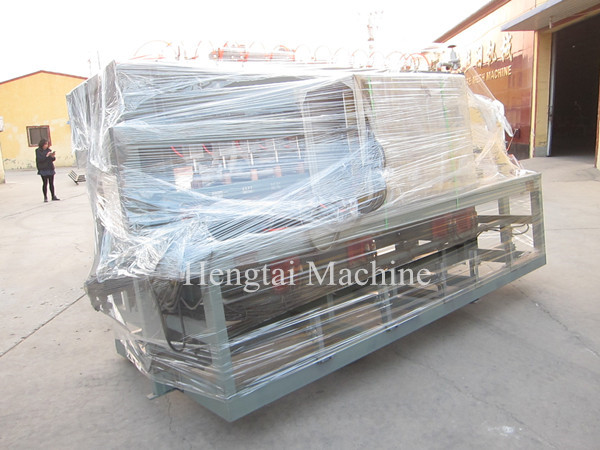

1. The reinforcing mesh welding machine will be protected with plastic film, and fastened with steel rope in container
2. For spare parts will be in carton box

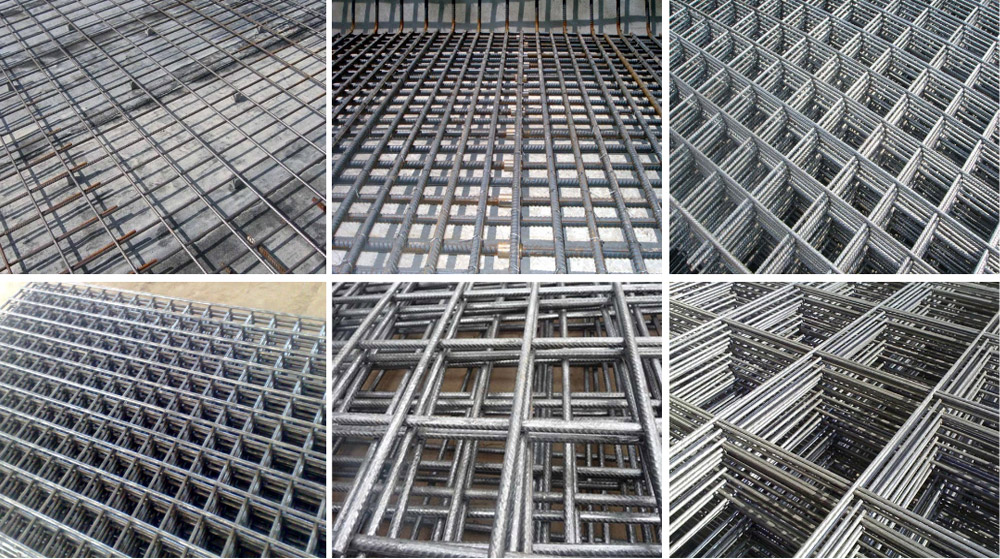

Products such as coal mine supporting mesh, wire mesh fence, high-rise building steel bridges mesh, reinforcing mesh applied in construction, road and so on.
